ILIAS-7-Install-Tutorial for Ubuntu 20.04

Mathjax

Activate Mathjax in Browser

  • cd /var/www/html/ilias/Customizing
  • git clone https://github.com/mathjax/MathJax.git MathJax
  • cd MathJax
  • git remote show origin
  • ILIAS 6 & 7: git checkout v2.6-latest

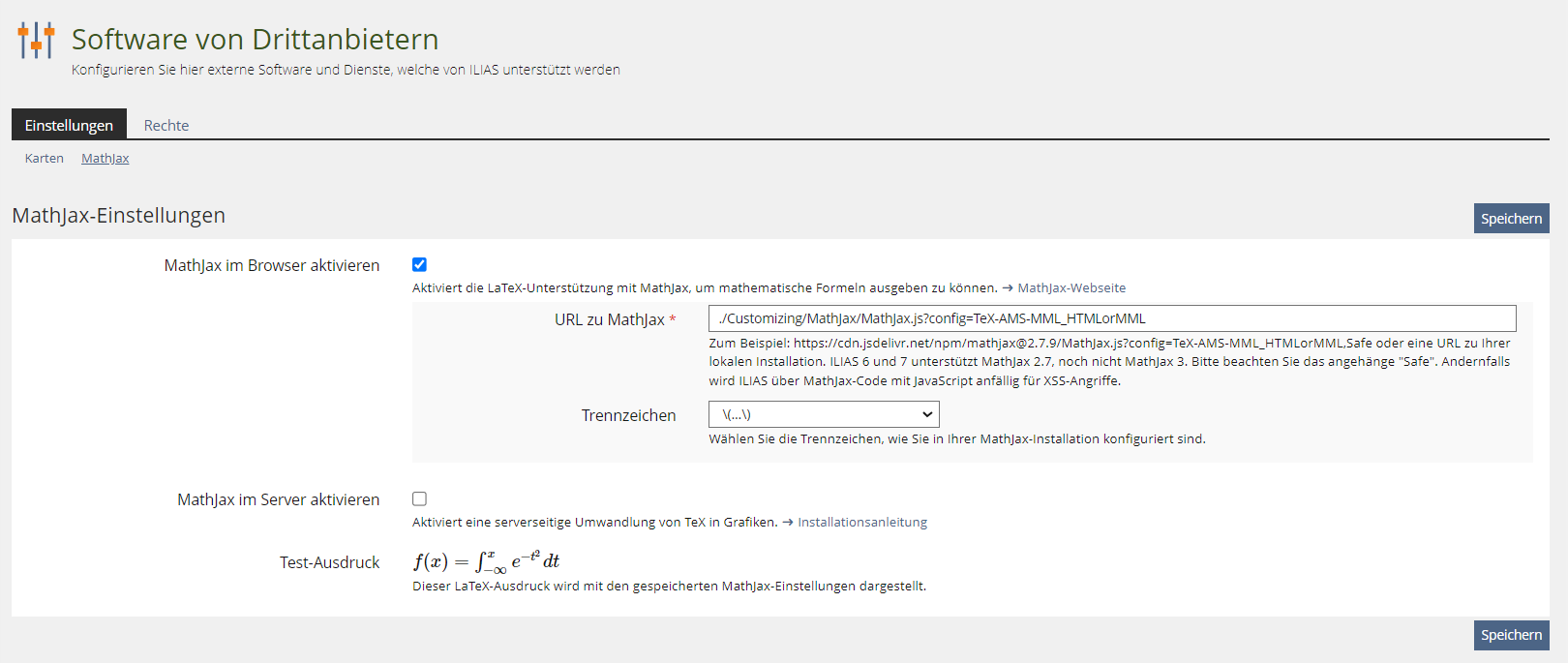

  • ILIAS->Administration->Third Party Software
    • Mathjax
      • Check: Activate MJ in Browser
        • URL to MJ: ./Customizing/MathJax/MathJax.js?config=TeX-AMS-MML_HTMLorMML

Install Mathjax server

  • The following is deprecated. Please use the the Installation guide linkt in the Administration menu ilias/Services/MathJax/docs/Install-MathJax-Server.txt

I recommend to run an own mathjax server if you plan to use this service, because this will be the quickest way to run mathjax. The first step is to install node, but be already installed it in the chatserver section above. So we just need to install some npm packages and create a start script.

I got some rendering issues that happend with the server version, anyway. For normal rendering, use the browser rendering above.

Node versions < 5 will not work with mathjax. Please update to 6.9.5 or similar like described in the chat section above.

  • mkdir /opt/mathjax
  • cd /opt/mathjax
  • npm install https://github.com/mathjax/MathJax-node/tarball/master
  • npm install mathjax-server
  • cd /opt/mathjax
  • nano mathjax.js
  • Put these lines in:
1
2
var server = require('./node_modules/mathjax-server/index.js');
server.start(8003);
  • Start the server manually: node mathjax.js - if there is something wrong, you will get: worker 4216 died. If all is fine, you will get: Server listening on port 8003. If this do not work, find out the path of node with whereis node and try the start like this:
    • /usr/local/bin/node mathjax.js
  • Stop the server with STRC+C
  • Now we create the start script: nano /etc/init.d/ilmathjax
  • Copy the following in:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
#!/bin/bash
### BEGIN INIT INFO
# Provides:          ilmathjax2
# Required-Start:    $remote_fs $syslog
# Required-Stop:     $remote_fs $syslog
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: ILIAS-Mathjaxserver nodebased
# Description:       This file should be used to construct scripts to be
#                    placed in /etc/init.d.
### END INIT INFO

# Author: Wolfgang Hubesch wolfgang.huebsch@gmx.de
#
# Please remove the "Author" lines above and replace them
# with your own name if you copy and modify this script.

# Do NOT "set -e"

# PATH should only include /usr/* if it runs after the mountnfs.sh script
PATH=/sbin:/usr/sbin:/bin:/usr/bin
DESC="ilmathjax"
NAME=ilmathjax

SCRIPTNAME=/etc/init.d/$NAME
USER=www-data

nodepath=/usr/local/bin/node
scriptpath=/opt/mathjax/mathjax.js
code="${nodepath} ${scriptpath}"

#######################################################################################################################
code="${nodepath} ${scriptpath}"
status=$(ps aux | grep ${scriptpath})

case "$1" in
    start)
                if [[ $status == *${code}* ]];
                then
                        echo "Mathjax is already running...exit now..."
                        exit

                else
                        echo "Mathjax is down...try to start..."
                        {
                               sudo -H -u $USER bash -c "${nodepath} ${scriptpath}" &
                        } &> /dev/null

                                status=$(ps aux | grep ${scriptpath})
                                if [[ $status == *${code}* ]];
                                then
                                echo "Mathjax service runs now as user $USER"
                                exit
                                else
                                echo "Fail to start Mathjax with user $USER. Please try user root instead if $USER"
                                exit
                                fi

                fi
           ;;

    stop)

                if [[ $status == *${code}* ]];
                then
                        echo "Mathjax is running...try to stop..."
                        kill $(ps aux | grep mathjax.js | awk '{print $2}') > /dev/null 2>&1
                        #kill $(ps aux | grep mathjax | awk '{print $2}') > /dev/null 2>&1
                        exit

                else
                        echo "Mathjax is already down..."
                        exit
                fi



        ;;

    status)

                if [[ $status == *${code}* ]];
                then
                        echo "Mathjax is running...exit now..."
                        exit

                else
                        echo "Mathjax is down...exit now..."
                        exit

                fi

        ;;

    *)
        echo "Usage: $0 {start|stop|status}"
        exit 1
esac
  • Check if the node path in line 5 is correct: whereis node
  • Make the scripts executable: chmod +x /etc/init.d/ilmathjax
  • update-rc.d ilmathjax defaults 93
  • Update crontab: nano /etc/crontab
  • Put the following lines in before the last #:
1
2
#Mathjax
*/5 * * * *     root /etc/init.d/ilmathjax start > /dev/null 2>&1

That means, the script checks every 5 minutes if the mathjax server is running. Replace mathjax with root if the script does not run and check the rightsetting.

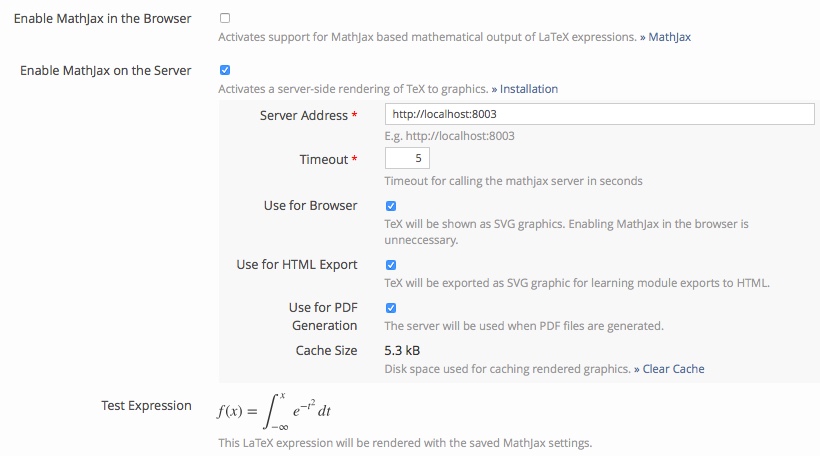

  • Activate Mathjax in ILIAS-Administration->Third party software->mathjax:
